B-CORE MRL

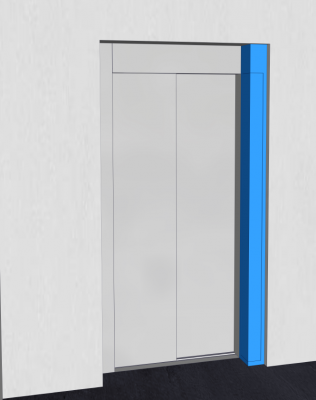

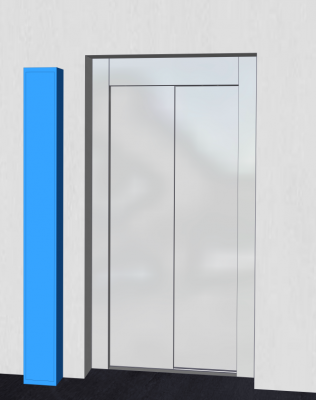

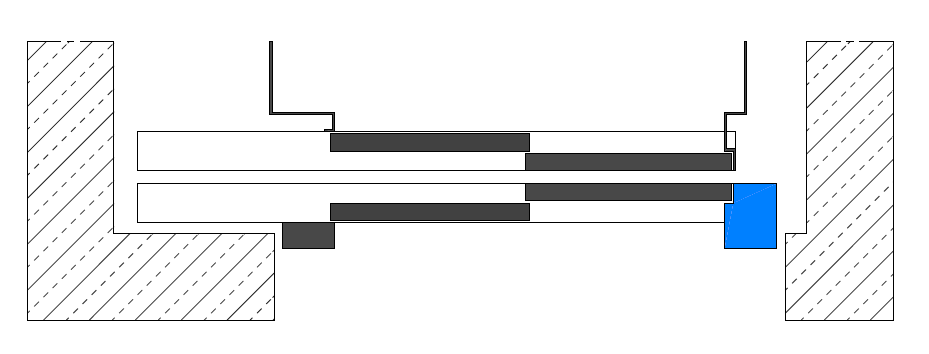

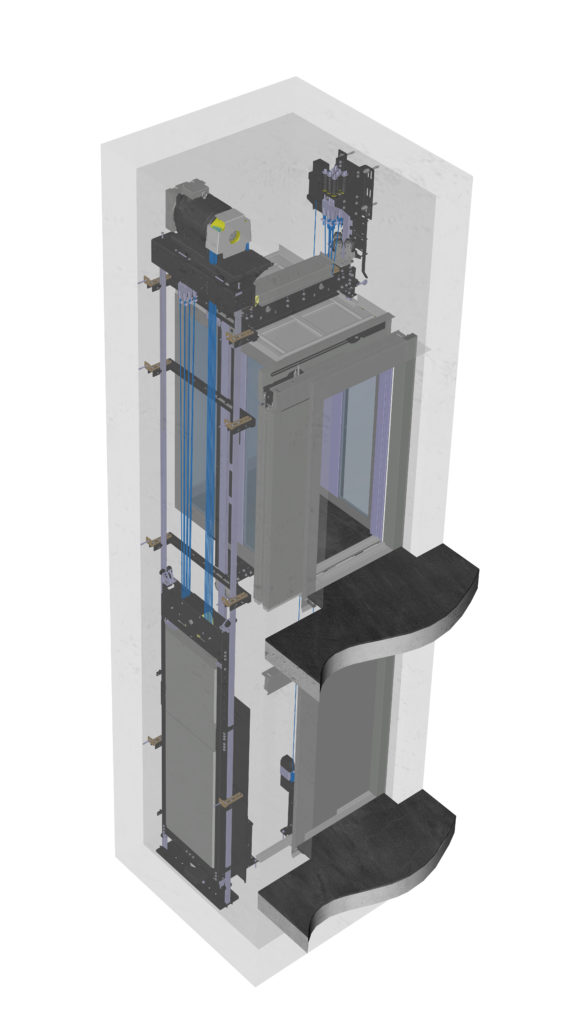

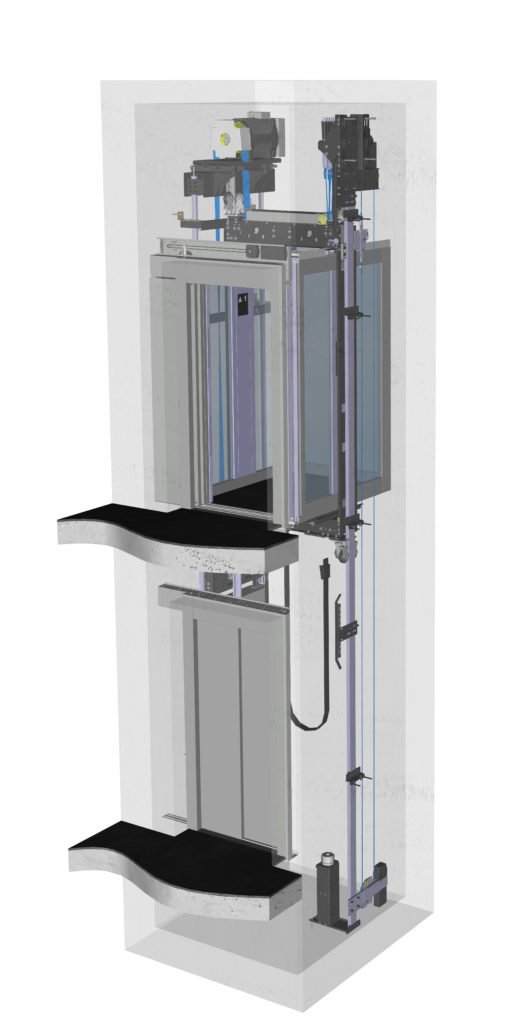

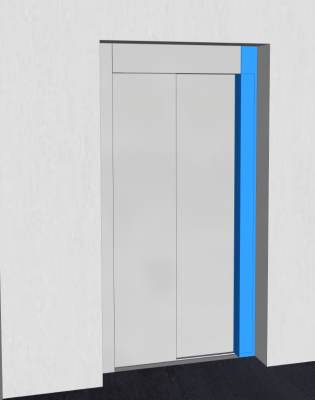

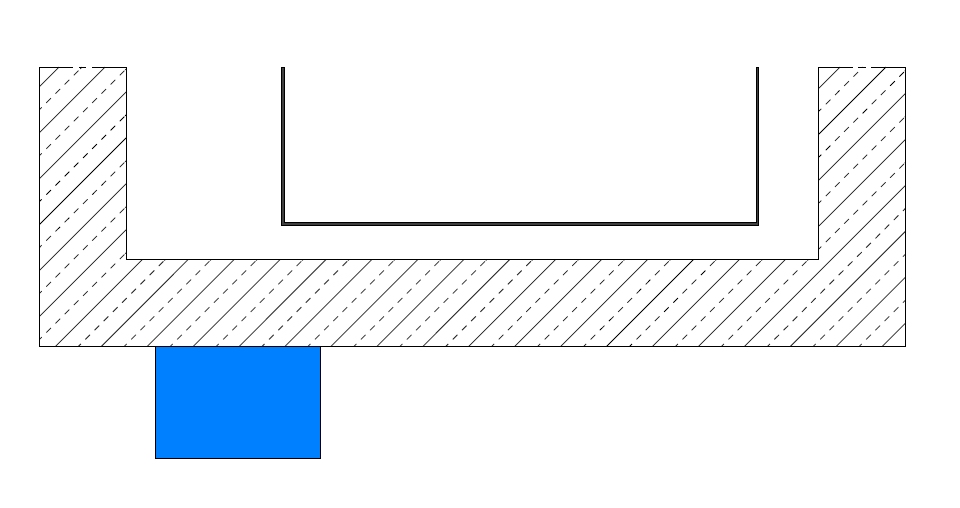

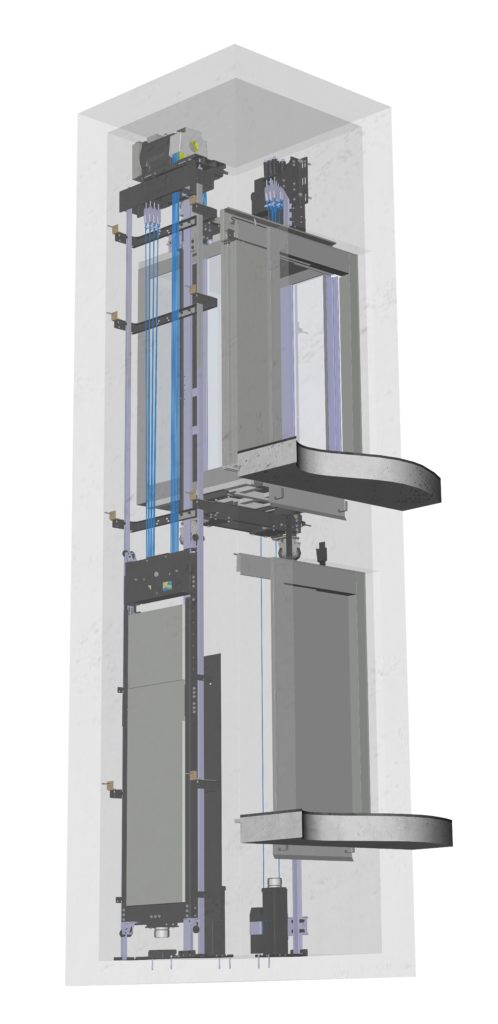

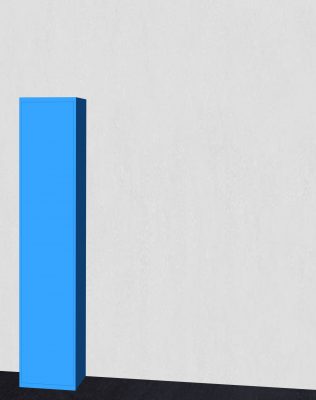

B-CORE MRL is an electric traction elevator without machine room with high ride comfort and low noise emission. No additional machine room is required for this type of elevator. The gearless drive and the control unit are accommodated in the shaft head. The control unit is usually located at the top landing next to the shaft door, in front of the door frame or integrated in the door frame.

SECURITY

QUALITY

FLEXIBILITY

The B-CORE series is developed and produced in-house. Designed for use in a wide variety of buildings, the modular construction kit offers tailor-made solutions for almost any application - in individual and group arrangements.

The core components have been developed and qualified under the strictest quality requirements in accordance with the latest technological standards. Innovation, reliability and efficiency are the guiding principles.
This flexible elevator system was developed from the ambition to achieve the perfect harmonious interaction between control, mechanical structure and drive train. Modern technologies combined with proven engineering result in fast and safe installation as well as uncomplicated and anticipatory service. Numerous options are available to meet individual customer requirements.

ADVANTAGES

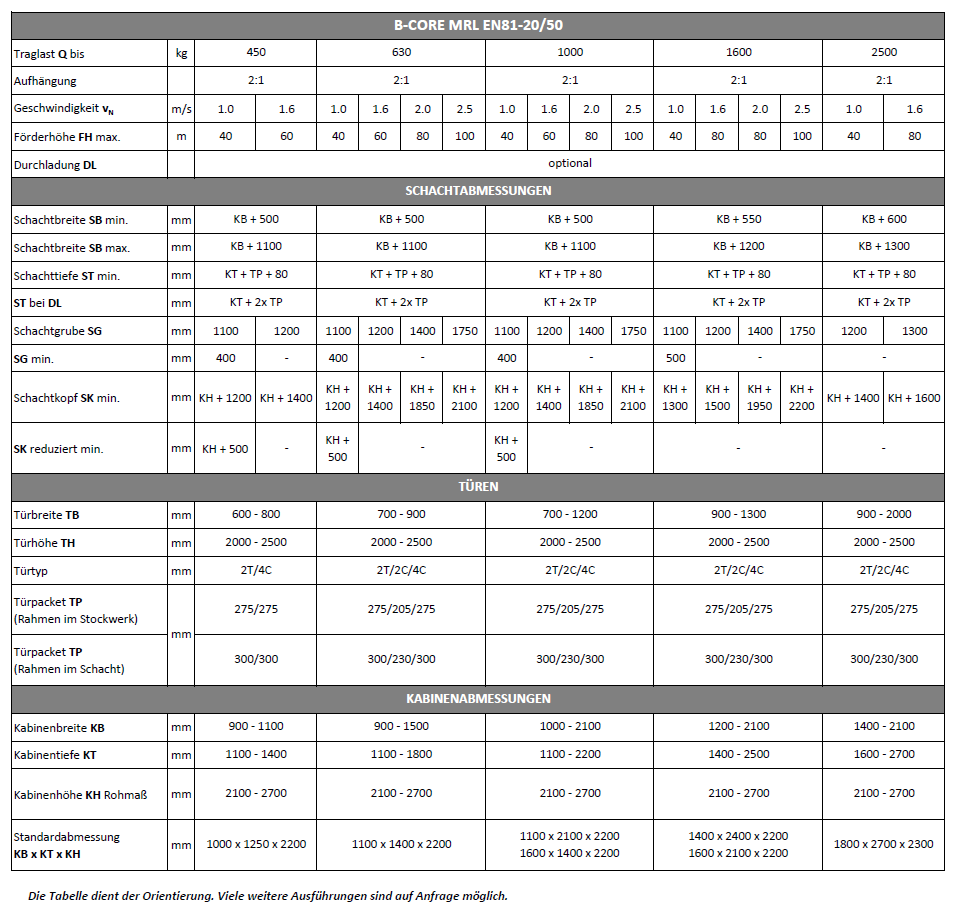

Type-tested lift with long reach. Rated speed up to 2.5m/s and load capacity up to 2500kg.
Reduced shaft pits up to 400mm and reduced shaft heads of 2600mm independent of car dimensions
Flexible cabin sizes in mm grid
Delivery of the kits and individual components for individual solutions
Minimal transmission of shear forces into the side walls of the shaft - advantages in terms of statics and sound transmission
Centrally guided driving unit with top block - excellent driving comfort
Use of different suspension rope sizes 6.0/8.0/10.0 mm
Use of different drives and controls
Unlimited cabin design possibilities
Unlimited possibilities for door designs
Same technology for speeds up to 2.5 m/s
Easy assembly, installation and commissioning - pre-assembled and pre-fitted components - plug and play
Integrated access control in the cabin as a standard function
Online/GSM service for support during commissioning
Integrated remote emergency call system via GSM
Analogue load measuring device as standard function ensures maximum driving comfort
Protection classes of IP54 are possible
